Preparing Astrid-2 for launch at Plesetsk

  Most pictures are "clickable" to obtain larger version!

Unpacking and trouble-shooting a glitch

Unpacking the satellite
Interface test with the Russian hardware
Glitch on main processor board found
during tests at Plesetsk necessitating
complete disassembly of main avionics unit
Thermal cycling test of main
processor board! Yes, it can be
done in the field!
Mikael works at microscope to examine
main processor board.
Glitch in avionics unit found and fixed,
reassembly underway. Here Sverker winds
up the wire booms around satellite body.

Final pre-launch assembly and checkout

Jimmy works on satellite.
Sverker warms part of satellite.
Jimmy and Mikael adjust solar
panel deployment pyro.
Spin-up rocket (blue connector)
with <10 grammes of propellant
Separation system seen from the
top. This part was mounted on the
Nadezhda satellite.

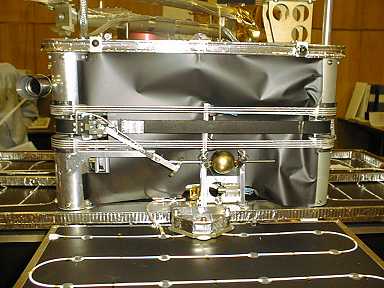

Detail of satellite. Wire boom and
one E-field sensor. Also note
back-wiring on solar panel.
Satellite almost ready. Charged particle
detector on N2 purge.
A tired but happy crew has finished
preparations. Astrid-2 is ready for mating
with the main satellite.
