FGB Antennas

FGB antennas on scale model displayed at IAF 96 in Beijing
Two "comb" antennas on FGB scale model. Is the small one for 630-640 MHz and the big for 463 MHz TV link?

NASA TV image annotated to show Kurs rendezvous antenna, Komparus command link antenna,
634 MHz telemetry system antenna and Sirius-4 boost phase telemetry system antenna

NASA picture of Zarya showing TORU remote-
control antenna, 634 MHz telemetry antenna,
463 MHz downlink television link antenna and
Komparus command system antenna.

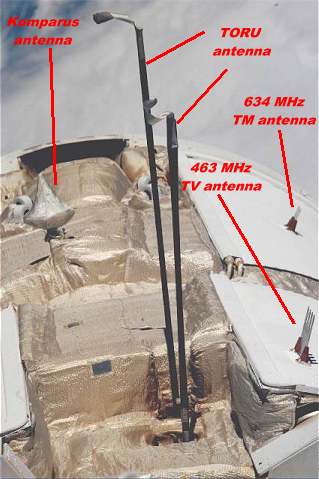

NASA TV picture showing undeployed feed element of TORU antenna and a 634 MHz
telemetry antenna. Note also the annotation (in Russian) next to the TORU antenna.
